A balanced flue is essentially a dedicated breathing system for your boiler.
Think of it like a snorkel: this clever ‘pipe-within-a-pipe’ design performs two crucial jobs at the same time. It draws in fresh air from outside for the boiler to burn, and it pushes out the harmful exhaust fumes, keeping the entire process safely sealed off from your home.
So, What Exactly Is a Balanced Flue?
Let's break it down without getting tangled in technical jargon. A balanced flue is a concentric pipe that goes straight through an external wall, connecting directly to your boiler. The inner pipe is the exhaust, getting rid of waste gases, while the outer pipe supplies a steady stream of fresh air for combustion.
This design is at the heart of most modern gas boilers, including the incredibly popular combi boilers you see in homes all over Eastbourne. Because the whole system is completely sealed from the room it’s in, it doesn’t need to pinch oxygen from your living space. For example, a modern flat in Eastbourne's Sovereign Harbour, which has no chimney, relies entirely on this technology for safe heating.
This is a massive leap forward in both safety and efficiency compared to older, open-flued systems that relied on a traditional chimney.
Key Features of a Balanced Flue
What makes this system so good? Its real strength is its self-contained operation, which brings several key benefits to homeowners across Eastbourne.
Sealed Combustion: The boiler's flame and fumes are kept entirely separate from your indoor air. This drastically cuts the risk of carbon monoxide exposure, which is a huge safety win.
No Chimney Required: This is a game-changer for modern properties or extensions. A balanced flue boiler just needs to be sited on an outside wall, giving you huge flexibility in where you can put it. Our Harrlie Plumbing and Heating engineers often install them in kitchen extensions in the Old Town area where a chimney is not an option.
Enhanced Efficiency: By taking cold air directly from outside, the system doesn't create draughts or pull warm air from inside your home. This simple difference helps your boiler run much more efficiently, saving you money on your energy bills.
At Harrlie Plumbing and Heating, we see the benefits firsthand every day. A properly installed balanced flue means a safer, more efficient heating system, whether it’s in a modern apartment near Sovereign Harbour or a traditional terraced house in Old Town. It's the industry standard for a very good reason.
How the Pipe-Within-a-Pipe Design Works
The magic of a balanced flue boiler comes down to its brilliantly simple "pipe-within-a-pipe" design. At its heart, the system uses two tubes, one tucked neatly inside the other. This concentric setup is the key to its safe and efficient operation, letting the flue perform two vital jobs at once within a single, sealed unit.
Picture it on a modern semi-detached home in the Langney area of Eastbourne. The larger, outer pipe acts as the air intake. It pulls in a steady stream of fresh, oxygen-rich air directly from outside your home and feeds it straight into the boiler’s combustion chamber. This ensures the flame gets exactly what it needs to burn cleanly.
At the very same time, the smaller inner pipe is the exhaust. It takes all the waste gases from combustion—like carbon monoxide and water vapour—and channels them safely away from the boiler and out into the open air.
The Sealed System Advantage
The entire process is completely sealed off from the room it’s in. This is a game-changer because it means the boiler never has to use the air from inside your home, a crucial difference from older, open-flued models that needed constant room ventilation. For homeowners, this sealed design brings practical benefits our engineers at Harrlie Plumbing and Heating see every day across Eastbourne.
No More Draughts: Since the boiler isn’t drawing air from the room, you don't need those extra wall vents. That means no more chilly draughts, keeping your home warmer.
Enhanced Safety: The risk of dangerous fumes leaking into your living space is virtually zero. The whole combustion cycle is safely contained within the sealed flue.
Installation Flexibility: This design means a boiler can be fitted in almost any room with an outside wall, not just in places with an old-fashioned chimney.

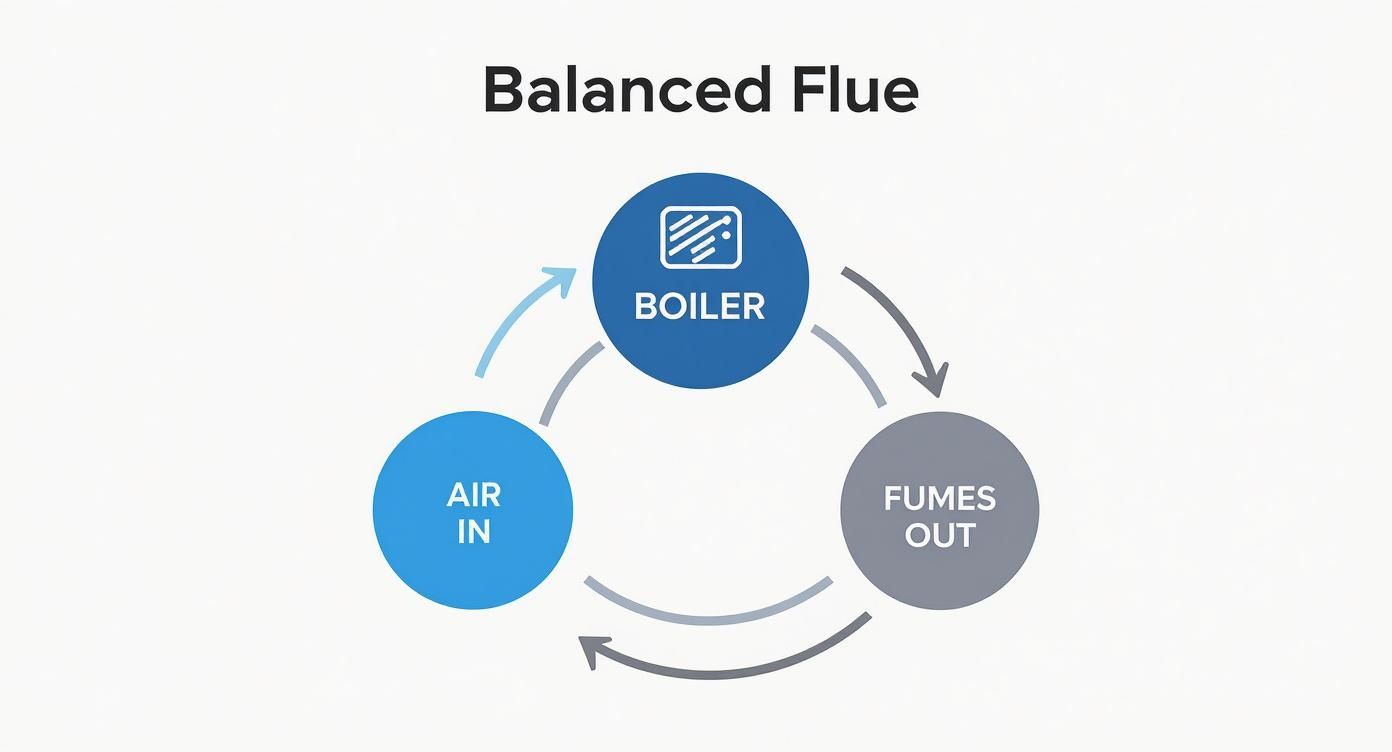

This concept map shows how the boiler, air intake, and fume exhaust all work together in a continuous, sealed loop.
The diagram clearly shows the two separate pathways for air and fumes. It perfectly highlights the core principle of what is a balanced flue and why its design is inherently so safe.
A Practical Eastbourne Example
Think about a terraced house in Old Town, Eastbourne. Space is at a premium, and putting a traditional chimney in a new kitchen extension just isn't an option. An engineer from Harrlie Plumbing and Heating could fit a modern combi boiler with a horizontal balanced flue that goes straight through the new external wall.
The system would pull fresh air from the side alleyway and push the fumes out safely above head height, all while taking up very little space. This self-contained "breathing" mechanism makes it the perfect, safe, and compliant solution for properties where a conventional flue would be impossible. It’s this kind of adaptability that makes the design so valuable for homes all across Eastbourne.
Key Benefits for Your Eastbourne Home
So, what does all this mean for your home? Let's get down to brass tacks. The benefits of a balanced flue are pretty significant, especially if you're an Eastbourne homeowner keen on improving safety, boosting efficiency, and bringing those energy bills back down to earth.
The biggest win, hands down, is the massive improvement in safety. Because a balanced flue creates a completely sealed circuit for combustion, the risk of dangerous gases like carbon monoxide leaking into your living space is virtually eliminated. That’s a critical feature that offers genuine peace of mind.
This move towards safer, sealed systems has made a real difference across the UK. As old open fires have been gradually replaced by appliances with balanced flues, we’ve seen a steady drop in incidents like chimney fires. It's interesting to see how this heating technology has improved safety statistics, which you can read more about in this detailed analysis on chimney fire trends at StovesOnline.co.uk.
Unlocking Greater Efficiency and Lower Bills
Safety aside, a balanced flue is your ticket to some serious efficiency gains. Modern high-efficiency condensing boilers—the standard for any new installation these days—rely entirely on this design to work their magic.
These systems can hit efficiency ratings of over 90%, which means very little heat gets wasted up the flue. For you, that translates directly into lower energy bills, a welcome bit of good news for any household budget in Eastbourne. The sealed system also stops draughts by not pulling warm air from inside your rooms, helping to keep your home comfortable and cost-effective.
At Harrlie Plumbing and Heating, we often find ourselves explaining to Eastbourne customers that upgrading to a boiler with a balanced flue isn't just about meeting regulations—it's a savvy financial move. The long-term savings on heating are substantial.
Incredible Installation Flexibility
Finally, one of the most practical perks is the incredible flexibility it gives you when deciding where to put your boiler. Since you don't need a traditional brick chimney, your options really open up. All a boiler with a balanced flue needs is a spot on an external wall.
This unlocks a world of possibilities for Eastbourne homes:
Kitchens: A popular choice, often tucked away neatly inside a cupboard in a new extension in the Roselands area.
Utility Rooms: Perfect for keeping the boiler out of the main living spaces.
Lofts or Garages: An excellent way to free up valuable cupboard space inside the house, which we often do in larger properties in Meads.
This flexibility is a game-changer for the varied properties we see across Eastbourne. Whether you're in a modern flat near the Sovereign Harbour or a classic terraced house in Old Town with limited space, a balanced flue system allows our engineers at Harrlie Plumbing and Heating to find the perfect spot for your new boiler—one that's safe, efficient, and makes sense for your home.
Understanding Installation Rules and Regulations
Installing a balanced flue isn't a weekend DIY job. It's a precise operation that's tightly controlled by safety regulations, and for good reason. These rules aren't just bureaucratic red tape; they're there to keep your home, your family, and even your neighbours safe from the real dangers of incorrectly vented flue gases.
Grasping what these regulations involve is the best way to understand why a professional installation from a company like Harrlie Plumbing and Heating is absolutely non-negotiable.
The most critical part of any balanced flue installation comes down to clearance distances. This simply means the minimum gap legally required between the external flue terminal—that little grille on your outside wall—and other parts of the building, like windows, doors, or corners. Getting these distances right is vital to stop exhaust fumes from sneaking back into your property or becoming a nuisance to others.
Picture a typical terraced house in the Meads area of Eastbourne, where homes are often built close together. A Harrlie Plumbing and Heating engineer knows that calculating these clearances isn't just a suggestion; it's a matter of precise, careful measurement.
Key Clearance Distances to Consider
While the boiler manufacturer's instructions always have the final say, UK Building Regulations lay down a clear set of minimums. Here are some of the most common siting rules for a horizontal balanced flue:
Below an openable window or air vent: A minimum of 300mm is needed to stop fumes from getting sucked back inside.
Directly above a door or window: The flue must sit at least 300mm above the top of the opening.
From a corner of the building: You need a clearance of 300mm from any internal or external corner to let the gases disperse properly.
From the ground or a public pathway: The terminal has to be at least 300mm above ground level to keep it clear from blockages.
From a neighbouring property boundary: A distance of 600mm is usually required to avoid causing what’s known as a statutory nuisance.
Just to make it a bit clearer, here’s a quick reference table.
Common Balanced Flue Siting Regulations
This table gives a simplified overview of the minimum clearance distances you'll often see for a standard horizontal balanced flue terminal.
These distances are non-negotiable and are a core part of ensuring a safe and compliant installation.
These regulations are a big part of why the UK has seen such a huge shift towards safer, more modern heating systems. Across the South East, homeowners are upgrading to new boilers that legally must have correctly installed balanced flues. This trend is backed up by national data, showing a sharp rise in Energy Performance Certificates being issued for new, high-efficiency heating systems. If you're interested in the numbers, you can discover more insights about regional boiler statistics from Uswitch.
"A few centimetres can be the difference between a safe installation and a dangerous one. At Harrlie Plumbing and Heating, we treat these regulations as absolute when working in Eastbourne homes. There is no room for error when it comes to flue placement and gas safety."
Why You Must Use a Gas Safe Registered Engineer
These complex rules are exactly why only a Gas Safe registered engineer is legally allowed to touch a gas boiler and its flue. Someone without the right training might easily overlook a critical clearance, potentially exposing everyone in the building to the silent threat of carbon monoxide.
Our engineers at Harrlie Plumbing and Heating aren't just Gas Safe certified; they're seasoned experts at navigating the unique challenges presented by properties all over Eastbourne. They make sure every single installation is fully compliant, perfectly safe, and running efficiently, giving you all the proper documentation for your records.
This professional sign-off isn't just a piece of paper—it's a vital part of your home's safety history and a key component of a landlord's legal obligations. To get a better idea of the rigorous checks involved, have a look at our guide on what a Gas Safety Certificate covers.
Keeping Your Balanced Flue Safe and Efficient
Think of your balanced flue as the lungs of your heating system—it works tirelessly in the background, but it's definitely not a 'fit and forget' component. To keep it operating safely and performing at its best for years to come, it needs a bit of regular attention.
An annual boiler service is the absolute cornerstone of this care. When a Harrlie Plumbing and Heating engineer pops round to your Eastbourne home, a thorough flue inspection isn’t just an optional extra; it's a critical part of the job. We’ll meticulously check the external terminal for any blockages—it’s surprising how often we find leaves, debris, or even birds' nests causing trouble in our leafy local areas like Old Town and Meads.
Then, we move inside to make sure every seal is perfectly intact and secure, leaving no chance for harmful fumes to escape. This is followed up with a flue gas analysis, a precise test that tells us your boiler is burning fuel cleanly and that the exhaust gases are well within safe limits.
Homeowner Checks Between Services
While nothing replaces a professional service, you can definitely play a part in spotting problems early. Taking a few moments for a quick visual check every couple of months can make a huge difference. Here’s a simple checklist for Eastbourne homeowners:
Check the Terminal: Take a quick look at the external grille on your outside wall. Is it clear of overgrown plants, leaves, or any other rubbish? We often see flues in Eastbourne's coastal areas partially blocked by wind-blown debris.
Inspect the Wall: Do you see any staining, soot marks, or damp patches on the brickwork around the flue? These can be tell-tale signs of a problem with the seals or exhaust.
Listen to Your Boiler: Are there any unusual clunks, bangs, or whirring noises when the boiler fires up or is running?
Monitor Performance: Has your boiler started shutting down or 'locking out' frequently? This is often a classic warning sign that something isn't right with the flue or ventilation.
Spotting a problem early prevents it from snowballing into a bigger, more expensive headache. If you notice any of these signs, it's vital to switch off the appliance and call a Gas Safe registered engineer in Eastbourne, like our team at Harrlie Plumbing and Heating, straight away.
These simple steps, combined with professional annual maintenance, create a solid safety net for your home. If you'd like to understand more about what a comprehensive boiler check involves, feel free to explore our detailed guide on how to service a boiler in Eastbourne. Keeping your balanced flue in top condition is simply the best way to ensure your heating system stays safe, reliable, and efficient.
Your Local Boiler Experts in Eastbourne
Picking the right heating system—and a trustworthy team to install it—is one of the most important decisions you'll make for your home's comfort and safety. Throughout this guide, we've walked through what a balanced flue is and why it’s become the go-to solution for modern, efficient, and safe heating in countless homes across Eastbourne.
At Harrlie Plumbing and Heating, our promise is simple. We provide local residents with honest, expert advice and flawless installations that you can count on, year after year. We don’t just fit boilers; we deliver the lasting peace of mind that comes from knowing the job was done right, whether you're in a seaside apartment in Sovereign Harbour or a growing family home in Hampden Park.
Why Choose a Professional?
Your boiler's flue system isn't just a pipe; it's a critical safety component, and any work done on it has to be handled with absolute precision. When you're looking for help, it's vital to make sure any installation or maintenance is carried out by qualified, Gas Safe registered boiler engineers. This isn't just a strong recommendation—it’s a legal requirement designed to protect you and your family from serious risks like carbon monoxide leaks.
Our Gas Safe registered team at Harrlie Plumbing and Heating has the training, the experience, and the local Eastbourne knowledge to ensure your balanced flue system is installed and maintained to the highest possible safety standards.
If you're thinking about a new boiler or just need your current system serviced, give our friendly Eastbourne team a call today. We'd be happy to provide a no-obligation quote and show you how we can make your home warmer, safer, and more efficient.
Frequently Asked Questions About Balanced Flues
We get asked a lot about balanced flues by our customers across Eastbourne. To help you feel more confident about your heating system, here are some straightforward answers to the questions we hear the most.
Do I Need a Chimney for a Balanced Flue Boiler?
No, you don’t, and that’s one of the biggest wins with this technology. A balanced flue boiler just needs to be installed on an outside wall, which gives you so much more freedom when picking a spot for it.
This is brilliant news for modern homes or extensions, like those you see in Sovereign Harbour, that were built without a traditional chimney. It means our engineers at Harrlie Plumbing and Heating can fit a high-efficiency boiler neatly and safely in a kitchen, utility room, or even a properly ventilated cupboard.
How Can I Tell If My Flue Is Blocked?
A blocked flue is a serious safety concern, but thankfully, your boiler usually gives you a few warning signs that something’s not right. It’s vital you act on these straight away.
Keep an eye out for these common red flags:
Frequent Boiler Lockouts: Your boiler keeps shutting itself down for no apparent reason.
Stains or Soot: You spot black marks, soot, or damp patches on the wall around the flue terminal outside.
Pilot Light Problems: If you have an older boiler, the pilot light might struggle to stay lit and keep going out.
If you notice any of these signs in your Eastbourne home, don't just hope they'll go away. The safest move is to switch your boiler off immediately and call a Gas Safe registered engineer. A blockage can cause a dangerous build-up of carbon monoxide, and it's a problem that needs a professional, like Harrlie Plumbing and Heating, to sort it out without delay.
Can I Replace My Old Boiler with a Balanced Flue Model?
Absolutely. In fact, if you're upgrading an old gas boiler here in the UK, it’s almost a certainty that your new one will use a balanced flue system.
Modern Gas Safe regulations and energy efficiency standards mean that pretty much all new combi, system, and regular boilers are designed as sealed appliances that need a balanced flue. It's a standard part of upgrading to a safer, more efficient heating system for your Eastbourne home—a positive change that gives you better performance and greater peace of mind.
For expert advice or a professional check on your balanced flue system, trust the team that knows Eastbourne. Get in touch with Harrlie Plumbing and Heating today for a no-obligation quote and make sure your home stays warm and safe.
